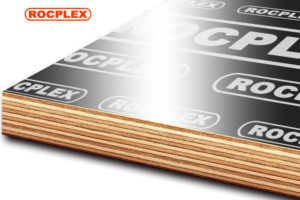

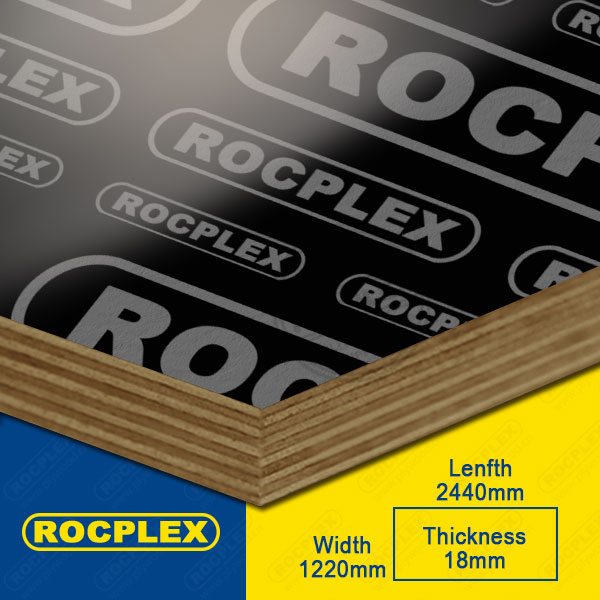

Shuttering Plywood 18mm Phenolic Exterior Plywood For Concrete Form use Board

Shuttering Plywood 18mm Phenolic Exterior Plywood For Concrete Form use Board

Short Description:

Shuttering Plywood 18mm Phenolic Exterior Plywood for Concrete Form Use Board provides durability, moisture resistance, chemical resistance, versatile surface options, sealed edges, ease of use, and suitability for a wide range of construction applications.







Product Detail

Introducing the Shuttering Plywood 18mm Phenolic Exterior Plywood for Concrete Form Use Board, a top-of-the-line hardwood plywood designed specifically for construction applications. This high-quality plywood is coated with a phenolic resin-treated film that forms a protective layer during production, ensuring exceptional durability and performance.

The Shuttering Plywood is available with either a smooth or mesh surface, providing options to suit different project requirements. The smooth surface offers a sleek finish, while the mesh surface enhances grip and adhesion, providing added safety during construction.

To enhance its resistance against moisture and prolong its lifespan, the edges of the plywood are sealed with water-dispersible acrylic paint. This sealing process prevents water penetration and reduces the risk of delamination, making the plywood suitable for use in various weather conditions.

This type of plywood is widely utilized in the construction industry and is particularly well-suited for applications such as concrete formwork and trailer floor production. Its robust construction and protective film surface ensure the strength and stability required for demanding concrete formwork projects.

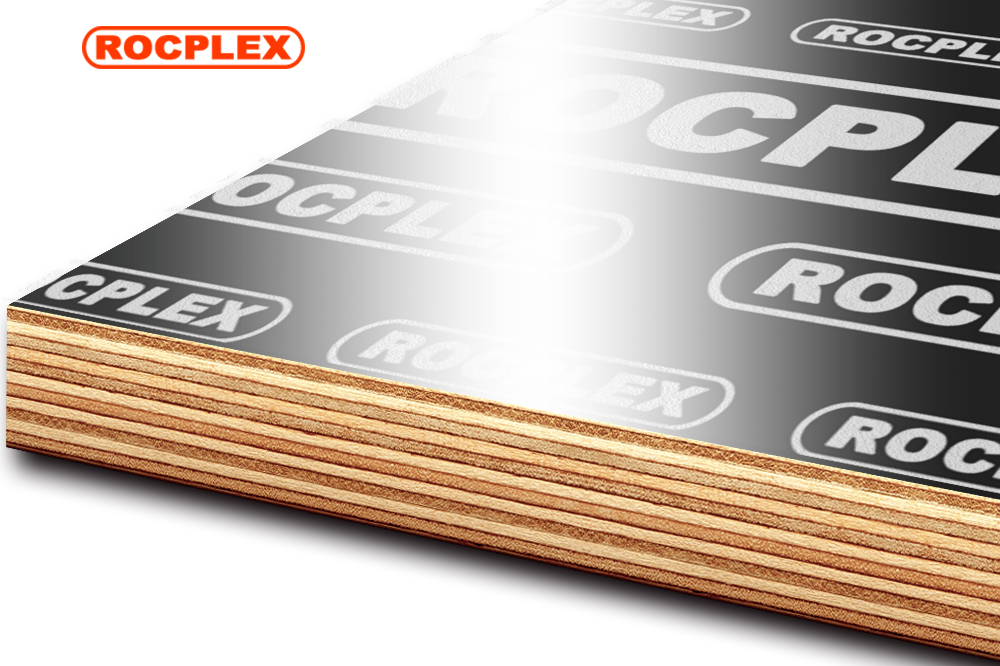

ROCPLEX 18mm film-faced plywood – Upscale

Sr NO.

Property

Unit

Test Method

Value Of Test

Result

1

Moisture Content

%

EN 322

7.5

Check out

2

Density

kg/m3

EN 323

690

Check out

3

Bonding Quality

Bonding Quality

Mpa

EN 314

Max: 1.68 Min:  0.81

Check out

Damage Rate

%

85%

Check out

4

Bending Modulus of Elasticity

Longitudinal

Mpa

EN 310

6997

Check out

Lateral

6090

Check out

5

Longitudinal

Mpa

Mpa

59

Check out

Lateral

43.77

Check out

6

Cycle Life

About 15-25 Repeated Using Times According To Projects By Formwork Application


ROCPLEX Shuttering Plywood 18mm Phenolic Exterior Plywood – Midscale

Sr NO.

Property

Unit

Test Method

Value Of Test

Result

1

Moisture Content

%

EN 322

8

Check out

2

Density

kg/m3

EN 323

605

Check out

3

Bonding Quality

Bonding Quality

Mpa

EN 314

Max: 1.59 Min:  0.79

Check out

Damage Rate

%

82%

Check out

4

Bending Modulus of Elasticity

Longitudinal

Mpa

EN 310

6030

Check out

Lateral

5450

Check out

5

Longitudinal

Mpa

Mpa

57.33

Check out

Lateral

44.79

Check out

6

Cycle Life

About 12-20 Repeated Using Times According To Projects By Formwork Application


ROCPLEX Shuttering Plywood 18mm Phenolic Exterior Plywood – Economical

Sr NO.

Property

Unit

Test Method

Value Of Test

Result

1

Moisture Content

%

EN 322

8.4

Check out

2

Density

kg/m3

EN 323

550

Check out

3

Bonding Quality

Bonding Quality

Mpa

EN 314

Max: 1.40 Min:  0.70

Check out

Damage Rate

%

74%

Check out

4

Bending Modulus of Elasticity

Longitudinal

Mpa

EN 310

5215

Check out

Lateral

4796

Check out

5

Longitudinal

Mpa

Mpa

53.55

Check out

Lateral

43.68

Check out

6

Cycle Life

About 9-15 Repeated Using Times According To Projects By Formwork Application


ROCPLEX Shuttering Plywood 18mm Phenolic Exterior Plywood Advantage
  1. Durability: Made from high-quality hardwood and coated with a phenolic resin-treated film, the plywood is highly durable and can withstand the rigors of construction sites and concrete formwork.
  2. Moisture Resistance: The phenolic resin-treated film creates a protective barrier that prevents moisture penetration, reducing the risk of warping, swelling, and delamination.
  3. Chemical Resistance: The plywood is resistant to chemicals and oils commonly found in construction environments, ensuring its longevity and performance.
  4. Smooth or Mesh Surface Options: The plywood is available with a smooth or mesh surface, providing versatility for different project requirements and enhancing grip and adhesion where needed.
  5. Sealed Edges: The edges of the plywood are sealed with water-dispersible acrylic paint, further enhancing moisture resistance and preventing delamination.
https://www.plywood.cn

ROCPLEX 18mm Film Faced Plywood Save time, labor, and cost

ROCPLEX 18mm Film faced plywood Save cost



Be special for phenolic glue and film

The film-faced plywood can be disassembled and used repeatedly for both faces, saving 25% of the cost.



Optimization for the special grade of core



Be special for adhesive

ROCPLEX Film faced plywood Shorten the duration



Excellent effect of de-molding

Shorten 30% of the duration.



Avoid the reconstruction of the wall



Be easy to incise and blend

ROCPLEX Film faced plywood the high-quality casting



The flat and smooth faces

The faces are flat and smooth, avoiding bleeding out remains of bubbles and concrete.



The structure of waterproof and breathability



The edges are polished carefully


ROCPLEX Shuttering Plywood 18mm Phenolic Exterior Plywood Packing And Loading
https://www.plywood.cn
https://www.plywood.cn
https://www.plywood.cn/osb-oriented-strand-board-product/

Container Type

Pallets

Volume

Gross Weight

Net Weight

20 GP

8 pallets

22 CBM

13000KGS

12500KGS

40 HQ

18 pallets

53 CBM

27500KGS

28000KGS

Meanwhile, we also can supply you the formwork system accessories, commercial plywood, film-faced plywood, etc.
We are especially professional in supplying antislip plywood.
Please contact our sales team for more detailed information regarding Chinese film-faced plywood.

https://www.plywood.cn
https://www.plywood.cn
https://www.plywood.cn

Shuttering Plywood 18mm Phenolic Exterior Plywood FAQ

Q: What is the thickness of the Shuttering Plywood Phenolic Exterior Plywood?

A: The thickness of Shuttering Plywood Exterior Plywood is 18mm, as indicated in the product name.

Q: What is shuttering plywood used for?

A: Shuttering plywood is used as a temporary structure to support concrete while it sets during construction.

Q: Is Shuttering Plywood 18mm Phenolic Exterior Plywood waterproof?

A: Yes, this plywood is designed to be waterproof, thanks to the phenolic resin coating on the surface.

Q: Can Shuttering Plywood 18mm Phenolic Exterior Plywood be used for other purposes besides concrete formwork?

A: While this plywood is designed for use in concrete formwork, it can also be used for other purposes, such as wall and roof sheathing, temporary flooring, and packaging.

Q: Can Shuttering Plywood 18mm Phenolic Exterior Plywood be cut and shaped easily?

A: Yes, this plywood can be cut and shaped easily with common woodworking tools.
