Durable 12mm Shuttering Plywood: Perfect for Concrete Formwork

Durable 12mm Shuttering Plywood: Perfect for Concrete Formwork and Construction

Short Description:

Invest in our Shuttering Plywood 12mm Phenolic Exterior Plywood For Concrete Form use Board and experience the ultimate combination of strength, durability, and performance. Trust in its ability to streamline your construction process, enhance efficiency, and deliver outstanding results that meet the highest standards of quality and craftsmanship.

Send email to us

Product Detail

Introducing our high-quality 12mm Shuttering Plywood, purpose-built for demanding concrete formwork and construction applications. This plywood boasts precision engineering, offering exceptional load-bearing capacity and dimensional stability while maintaining ease of handling and installation. Its standout feature is the robust phenolic exterior surface, which provides superior water resistance and protection against wear and tear, ensuring a prolonged lifespan. Designed to prevent concrete adhesion, it guarantees clean, sharp-edged forms with minimal imperfections, enhancing project aesthetics. Crafted from sustainably sourced timber, our plywood panels consist of multiple layers of hardwood veneers bonded with strong exterior-grade adhesive, ensuring durability against heavy loads and resistance to warping or delamination. Choose our Shuttering Plywood for reliable, long-lasting performance in your construction endeavors.

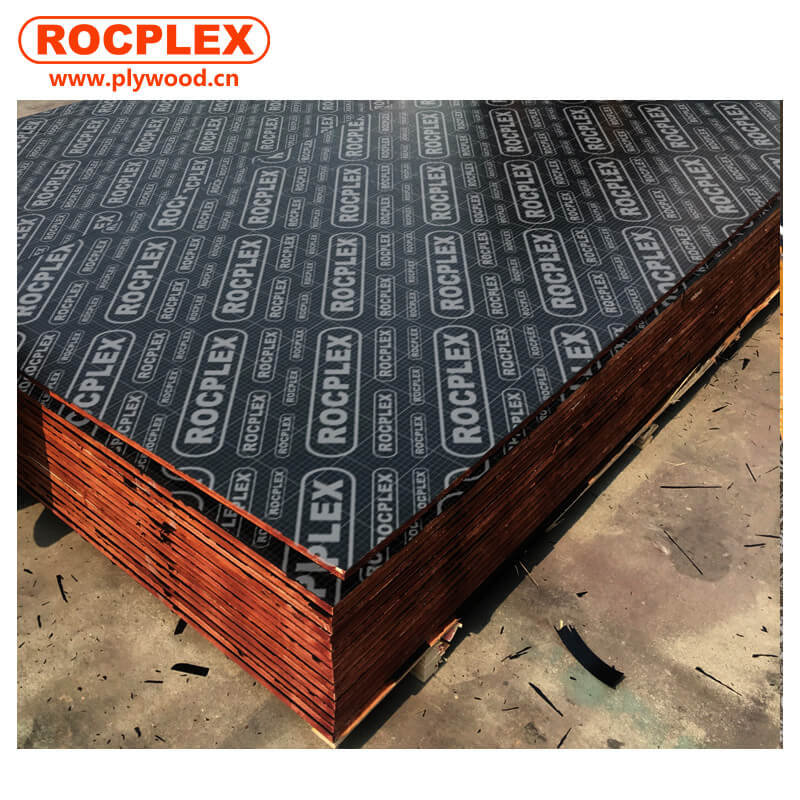

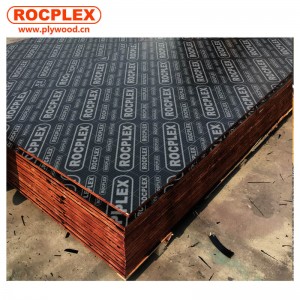

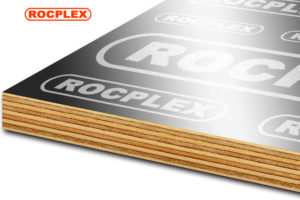

ROCPLEX 12mm black film-faced plywood – Upscale

Sr NO.	Property		Unit	Test Method	Value Of Test	Result
1	Moisture Content		%	EN 322	7.5	Check out
2	Density		kg/m3	EN 323	690	Check out
3	Bonding Quality	Bonding Quality	Mpa	EN 314	Max: 1.68 Min: 0.81	Check out
3	Bonding Quality	Damage Rate	%	EN 314	85%	Check out
4	Bending Modulus of Elasticity	Longitudinal	Mpa	EN 310	6997	Check out
4	Bending Modulus of Elasticity	Lateral	Mpa		6090	Check out
5	Longitudinal	Mpa	Mpa		59	Check out
5	Lateral	Mpa	Mpa		43.77	Check out
6	Cycle Life	About 15-25 Repeated Using Times According To Projects By Formwork Application

ROCPLEX 12mm black film-faced plywood – Midscale

Sr NO.	Property		Unit	Test Method	Value Of Test	Result
1	Moisture Content		%	EN 322	8	Check out
2	Density		kg/m3	EN 323	605	Check out
3	Bonding Quality	Bonding Quality	Mpa	EN 314	Max: 1.59 Min: 0.79	Check out
3	Bonding Quality	Damage Rate	%	EN 314	82%	Check out
4	Bending Modulus of Elasticity	Longitudinal	Mpa	EN 310	6030	Check out
4	Bending Modulus of Elasticity	Lateral	Mpa		5450	Check out
5	Longitudinal	Mpa	Mpa		57.33	Check out
5	Lateral	Mpa	Mpa		44.79	Check out
6	Cycle Life	About 12-20 Repeated Using Times According To Projects By Formwork Application

ROCPLEX 12mm black film-faced plywood – Economical

Sr NO.	Property		Unit	Test Method	Value Of Test	Result
1	Moisture Content		%	EN 322	8.4	Check out
2	Density		kg/m3	EN 323	550	Check out
3	Bonding Quality	Bonding Quality	Mpa	EN 314	Max: 1.40 Min: 0.70	Check out
3	Bonding Quality	Damage Rate	%	EN 314	74%	Check out
4	Bending Modulus of Elasticity	Longitudinal	Mpa	EN 310	5215	Check out
4	Bending Modulus of Elasticity	Lateral	Mpa		4796	Check out
5	Longitudinal	Mpa	Mpa		53.55	Check out
5	Lateral	Mpa	Mpa		43.68	Check out
6	Cycle Life	About 9-15 Repeated Using Times According To Projects By Formwork Application

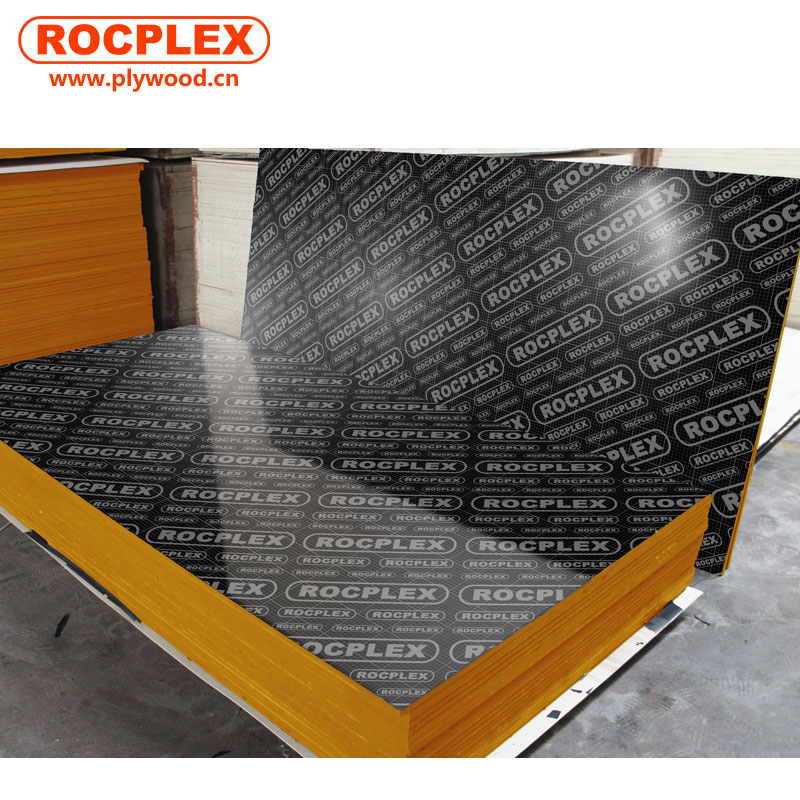

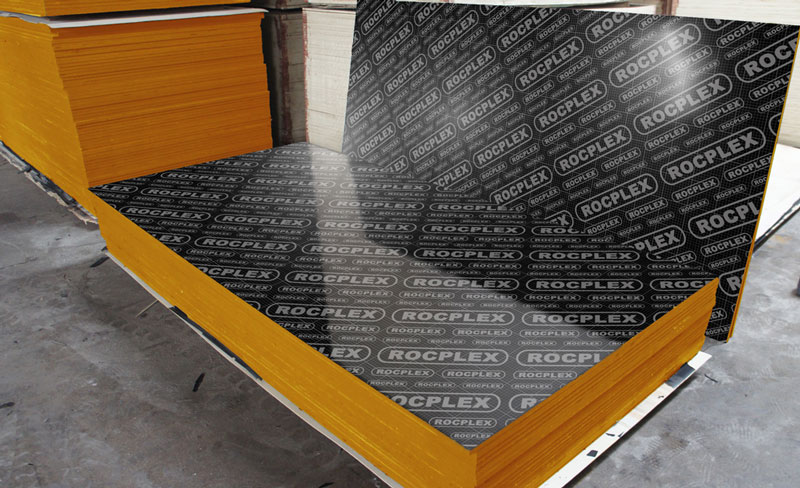

ROCPLEX 12mm Black Film Faced Plywood Save time, labor, and cost

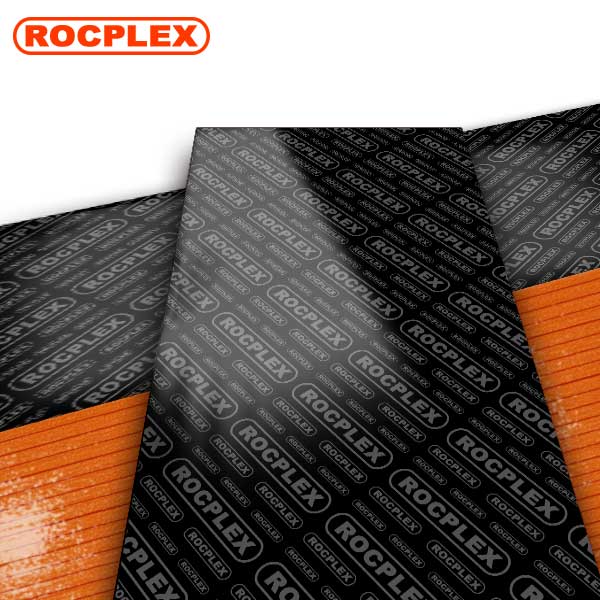

ROCPLEX 18mm Film faced plywood Save cost
	Be special for phenolic glue and film	The film-faced plywood can be disassembled and used repeatedly for both faces, saving 25% of the cost.
	Optimization for the special grade of core
	Be special for adhesive
ROCPLEX Film faced plywood Shorten the duration
	Excellent effect of de-molding	Shorten 30% of the duration.
	Avoid the reconstruction of the wall
	Be easy to incise and blend
ROCPLEX Film faced plywood the high-quality casting
	The flat and smooth faces	The faces are flat and smooth, avoiding bleeding out remains of bubbles and concrete.
	The structure of waterproof and breathability
	The edges are polished carefully

Properties of phenolic plywood

Durable: Concrete casting process involves alternative wet and dry conditions. The Shuttering Plywood 12mm Phenolic Exterior Plywood must be durable to withstand these conditions.
High in Strength: Cement, sand, and crushed stone are combined with water to create concrete. The shuttering plywood mould experiences stress when the concrete hardens and cures. Therefore, Shuttering Plywood 12mm Phenolic Exterior Plywood needs to be sturdy in order to endure these stresses.
Reusable:The benefit of using plywood for concrete shuttering that is secured with phenolic film is that when the concrete casting process is finished, the plywood shutters may be removed and the sheets can be utilised again. However, in order for the plywood sheets to be sufficiently reusable, care must be taken when putting up and taking down the form.
Shiny, glossy finish: The plywood has a very smooth, glossy surface thanks to the phenolic layer. This is a very helpful attribute when working with concrete shutters since the smooth laminate film surface prevents the concrete from adhering to the plywood. Compared to other processes, the smooth film surface offers the finished concrete a smooth finish, and since the concrete is already very smooth, no extra plastering is needed.
Dimensionally secure: Its dimensions must remain consistent despite the intense heat conditions that arise during the curing of concrete since it is used to make shutters for casting concrete.

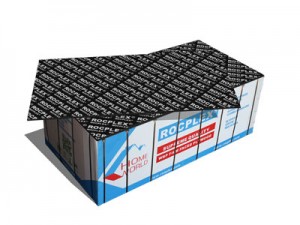

ROCPLEX Shuttering Plywood 12mm Phenolic Exterior Plywood Packing And Loading

https://www.plywood.cn/osb-oriented-strand-board-product/

Container Type	Pallets	Volume	Gross Weight	Net Weight
20 GP	8 pallets	22 CBM	13000KGS	12500KGS
40 HQ	18 pallets	53 CBM	27500KGS	28000KGS

Meanwhile, we also can supply you the formwork system accessories, commercial plywood, film-faced plywood, etc.
We are especially professional in supplying antislip plywood.
Please contact our sales team for more detailed information regarding Chinese film-faced plywood.

Shuttering Plywood 12mm Phenolic Exterior Plywood FAQ

Q: What is shuttering plywood?

A: Shuttering plywood is a type of plywood that is specifically designed for use in construction as a temporary structure to support concrete while it sets.

Q: What is phenolic exterior plywood?

A: Phenolic exterior plywood is a type of plywood that is designed to withstand exposure to outdoor elements, such as moisture and sunlight, without deteriorating.

Q: What is the thickness of the Shuttering Plywood 12mm Phenolic Exterior Plywood?

A: The thickness of Shuttering Plywood 12mm Phenolic Exterior Plywood is 12mm, as indicated in the product name.

Q: Can Shuttering Plywood 12mm Phenolic Exterior Plywood be used for other purposes besides concrete formwork?

A: While this plywood is designed for use in concrete formwork, it can also be used for other purposes, such as wall and roof sheathing, temporary flooring, and packaging.

Q: Is Shuttering Plywood 12mm Phenolic Exterior Plywood waterproof?

A: Yes, this plywood is designed to be waterproof, thanks to the phenolic resin coating on the surface.
