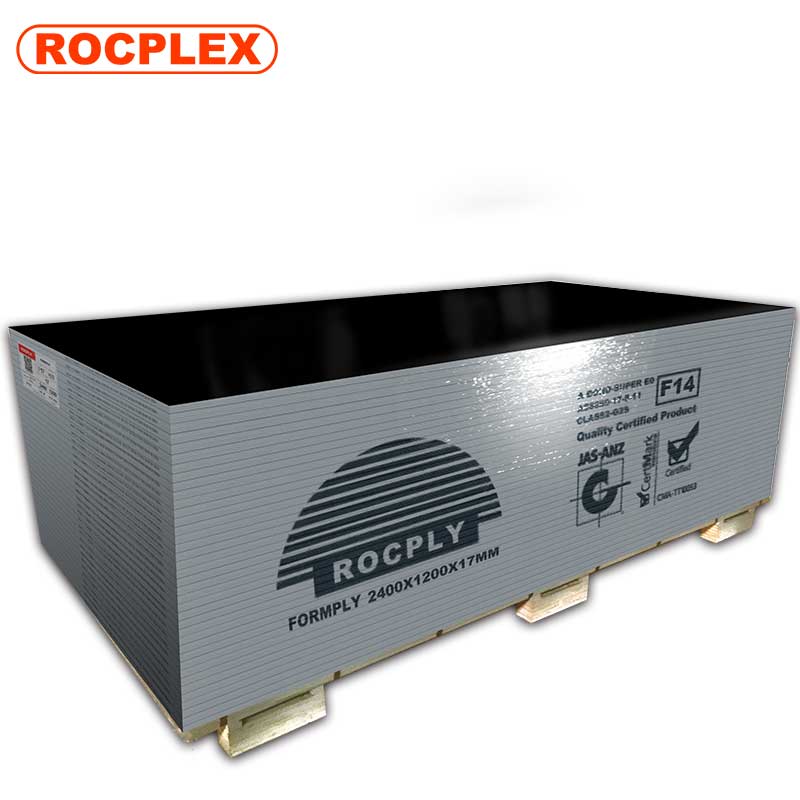

Budget Friendly Formply F14 17mm a Top-Quality Solution

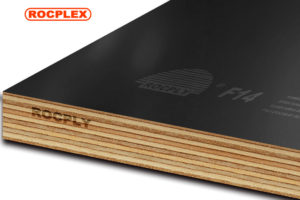

Formply F14, an AS 6669 certified 17mm plywood, excels in diverse formwork applications, including foundations, walls, and columns. This top-quality solution boasts exceptional strength and durability while prioritizing eco-friendliness, sourced from sustainable timber. With dimensions of 2400x1200mm, it offers versatility to cater to various construction projects.
Formply: Bridging Architecture and Structure
- Versatile Application: Formply seamlessly combines architectural and structural plywood qualities, primarily serving as a robust solution in concrete formwork.
- Concrete Containment: These panels excel in holding concrete within molds until it sets, ensuring precision in construction.
- Wide-Ranging Use: Formply finds extensive application in diverse projects, including beams, bridges, large deck forms, and even unconventional ventures like constructing python enclosures.
ROCPLY F14 For Strong, Stable, Concrete Formwork
| Stress Grade | Sheet Size (mm) | Thicknesses (mm) | Weight (kg/sheet) | Parallel to face grain | Perpendicular to face grain | CoreMaterials | PackingUnit (sheets) | ||
| Moment of inertia | Section modulus | Moment of inertia | Section modulus | ||||||
| I(mm4/mm) | Z(mm3/mm) | I(mm4/mm) | Z(mm3/mm) | ||||||
| F14 ROCPLY | 1800×1200 | 12, 17, 19 & 25 | 24 | 240.0 | 27.6 | 178.0 | 22.9 | Full hardwood | 40 / 43 |
| F14 ROCPLY | 2400×1200 | 12, 17, 19 & 25 | 32 | 240.0 | 27.6 | 178.0 | 22.9 | Full hardwood | 40 / 43 |
Surfaces
The ROCPLY formwork plywood features a specially customized High-Density Overlay (HDO) film facing that possesses remarkable water resistance. It does not absorb water, ensuring that the plywood does not swell or shrink when exposed to moisture.
The robust and smooth surface of ROCPLY provides an optimal finish, guaranteeing the production of first-class concrete even after multiple uses. This high-quality plywood maintains its integrity and performance over time, making it a reliable choice for construction projects.
Structure
To ensure outstanding hardness and stability, ROCPLY Formply is manufactured using high-grade full hardwood veneers that are bonded together using a super E0 waterproof adhesive known for its exceptional bond strength. Advanced techniques such as oblique joint and hot-melt splicing technology are employed to eliminate any potential gaps. These measures contribute to the overall strength and stability of the plywood, ensuring its excellent performance in construction applications.
Bonding
The Super E0 waterproof adhesive used in ROCPLY Formply exhibits remarkable properties. Even when subjected to boiling water for a continuous period of 72 hours, it retains its glue-sticking ability and remains non-deformed. This exceptional adhesive ensures the longevity and reliability of the plywood, making it suitable for demanding environments where moisture resistance is essential.
Sealing
To minimize moisture penetration, the edges of ROCPLY Formply are meticulously sealed in the factory using waterproof paint. The edges undergo a thorough sealing process, which is repeated four times to ensure optimal protection against moisture. This meticulous sealing enhances the plywood’s resistance to water and moisture, further enhancing its durability and performance in construction applications.
| 1 | Face and Back | ROCPLY Special Custom Film |
| 2 | Grade | AA grade |
| 3 | Core Materials | Full Hardwood Core |
| 4 | Glue Choose | A bond Waterproof Super E0 Glue |
| 5 | Thickness | 6-28mm(normal thickness:12mm, 17mm, 19mm, 25mm) |
| 6 | Specification | 1800mmX1200mm, 2400mmX1200mm 1800mmX600mm , 2400mmX600mm |
| 7 | Moisture Content | 8-14% |
| 8 | Density | 630-680 kg/ m3 |
Advantages of Formply F14:
- AS 6669 Compliance:
- Formply meets Australian Standard (AS) 6669, classifying it as high-performing plywood suitable for load-bearing operations.
- Customization Options:
- Consumers have the flexibility to order Formply in different colors for interior spaces, preserving aesthetic appeal.
- Moisture Protection:
- While not fully waterproof like marine plywood, Formply offers excellent moisture protection, making it ideal for high-moisture areas.
- All-Weather Resilience:
- Phenolic resin provides protection in all weather conditions, preventing expansion and warping.
- Formply sheets are capable of withstanding UV exposure and saltwater without deteriorating.
- Durability and Damage Resistance:
- Compliant with AS 6669 for strength, Formply is renowned for its durability.
- The laminated film surface shields both the front and back from damage, enhancing longevity.
- The laminated layer also safeguards the plywood’s core, further contributing to its durability.
- Versatility and Reusability:
- Formply is an exceptionally durable plywood, renowned for its versatility and reusability, making it a cost-effective choice for various projects.
| ROCPLY Fomply Save cost | ||
| Be special for phenolic glue and film | The family can be disassembled and used repeatedly for both faces, saving 25% of the cost. | |
| Optimization for the special grade of core | ||
| Be special for adhesive | ||
| ROCPLY Fomply Shorten duration | ||
| Excellent effect of de-molding | Shorten 30% of the duration. | |
| Avoid the reconstruction of the wall | ||
| Be easy to incise and blend | ||
| ROCPLY Formply The high quality of casting | ||
| The flat and smooth faces | The faces are flat and smooth, avoiding bleeding out remains of bubbles and concrete. | |
| The structure of waterproof and breathability | ||
| The edges are polished carefully | ||
| Container Type | Pallets | Volume | Gross Weight | Net Weight |
| 20 GP | 10-12 pallets | 22 CBM | 13000KGS | 12500KGS |
| 40 HQ | 20-27 pallets | 43 CBM | 25500KGS | 26000KGS |
-
