2745 x 1200mm 4mm Structural Bracing Plywood F22 Braceboard Plywood Hardwood Plybrace | SENSO

Short Description:

2745 x 1200mm 4mm Structural Bracing F22 Braceboard Plywood Hardwood Plybrace | SENSO structural Bracing ply is the safe and reliable option when it comes to providing bracing and structural support for timber framed buildings. It’s built to withstand earthquakes, high winds, and anything else mother nature throws at your building. It gives you the assurance that it has the structural integrity and tested and used in Australia environment for more than 10 years and strength grade in the Australian Standard.
SENSO hardwood bracing plywood can be supplied in untreated and H2-S treated.

Send email to us

Product Detail

2745 x 1200mm 4mm Structural Bracing Plywood

SENSO Structural Bracing Plywood has been manufactured at our plant in China, for in excess of 15 years and has been used successfully in Asia, Australia, and New Zealand.

Structural Bracing Plywood is a hardwood plywood product made especially for the structural bracing of houses. Structural CD Grade Bracing Plywood manufactured from hardwood veneers bonded with an ‘A’ bond glue line. Plywood bracing is suitable for use in housing structural bracing wall and roof applications.
SENSO structural CD grade bracing hardwood plywood is manufactured to Australian Standard AS/NZS 2269.

Structural CD Grade Bracing Hardwood Plywood F22
Grade: C face / D back
Standard: AS/NZS 2269
Bond: A-Bond
Structural Rating: F22

SENSO Bracing is available in 2440mm, 2745mm, and 3050mm lengths and 900mm and 1200mm widths. It is available in an F22 or F27 Hardwood plywood for structural bracing applications.

Normal Thickness	Sheet Size (mm)	Grade	Density (kg/cm)				Glue	Thickness tolerance	Packing Unit (sheets)
				Face and back	Core Materials	Moisture

4.0mm	2400×900	F22	650	Hardwood	Hardwood	8-14 %	A bond Super E0	+/-0.2mm	100 / 400
4.0mm	2400×1200		650	Hardwood	Hardwood	8-14 %		+/-0.2mm	100 / 400
4.0mm	2745×900		650	Hardwood	Hardwood	8-14 %		+/-0.2mm	100 / 400
4.0mm	2745×1200		650	Hardwood	Hardwood	8-14 %		+/-0.2mm	100 / 400
4.0mm	3050×900		650	Hardwood	Hardwood	8-14 %		+/-0.2mm	100 / 400
4.0mm	3050×1200		650	Hardwood	Hardwood	8-14 %		+/-0.2mm	100 / 400

SENSO Bracing Plywood Advantage

F22 Hardwood Ply brace is a high-strength durable hardwood ply for bracing timber frames.

High structural strength and stability, providing reliable bracing support in construction projects.
Stiffness and rigidity for enhanced structural integrity and resistance to movement or deflection.
Large panel size (2745 x 1200mm) for efficient coverage and reduced installation time.
Suitable for a wide range of construction applications, including residential and commercial projects.
Durable and long-lasting, ensuring the longevity and stability of the structure.
Lightweight design for easy handling and installation, reducing labor and transportation costs.
Resistant to warping, shrinking, and swelling, maintaining its shape and performance over time.
Compatible with other building materials and systems, allowing for seamless integration into construction projects.
Provides a cost-effective solution for bracing and structural support requirements.
Complies with industry standards and regulations for reliable and safe construction practices.

SENSO Structural Bracing Plywood Application

F22 hardwood bracing plywood is a stable and workable type of plywood, with numerous applications for the building, shopfitting, and cabinet-making industries.

Bracing and structural support in residential and commercial buildings.
Roof and wall bracing in construction projects.
Reinforcing internal and external walls to resist lateral forces.
Strengthening floor systems to prevent sagging or excessive deflection.
Forming shear walls for seismic resistance.
Enhancing the stability of timber-framed structures.
Providing lateral support in timber or steel frame constructions.
Creating stiffening elements for high-rise buildings or tall structures.
Support for temporary structures during construction or renovation.
Bracing for timber trusses, beams, or columns.

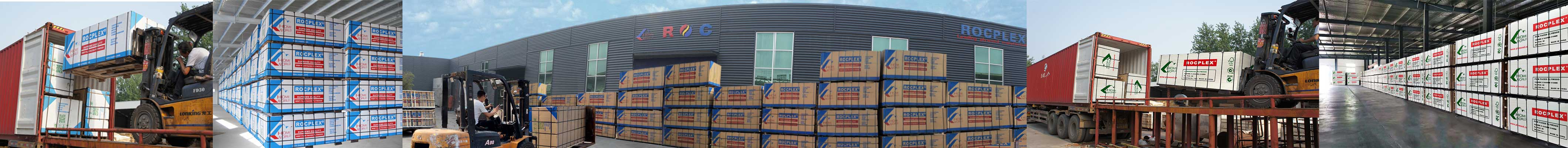

SENSO 4mm Structural Bracing Packing and Loading

Container Type	Pallets	Volume	Gross Weight	Net Weight
20 GP	10 pallets	20 CBM	13000KGS	12500KGS
40 HQ	20 pallets	40 CBM	25000KGS	24500KGS

SENSO Structural Bracing Plywood Certified By

FSC

Meanwhile, we also can supply you the formwork system accessories, commercial plywood, film-faced plywood, etc.

We are especially professional in supplying antislip plywood.
Please contact our sales team for more detailed information regarding Chinese plywood.

SENSO Structural Plywood
